| Brand / model | Rotoflex / Racer 1000 |
| Type | converting machine |
| Year / SN | na / R240-840427 |

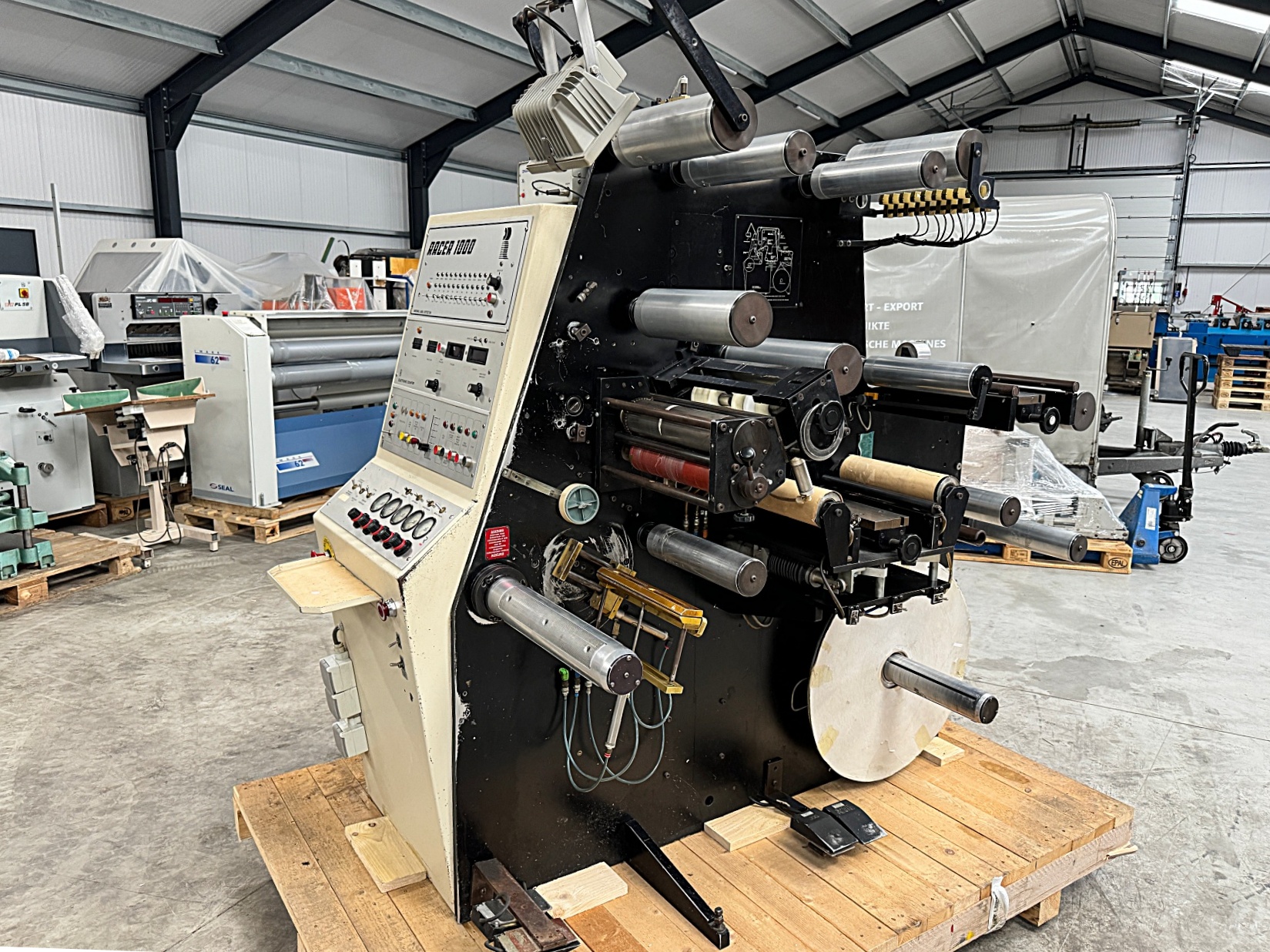

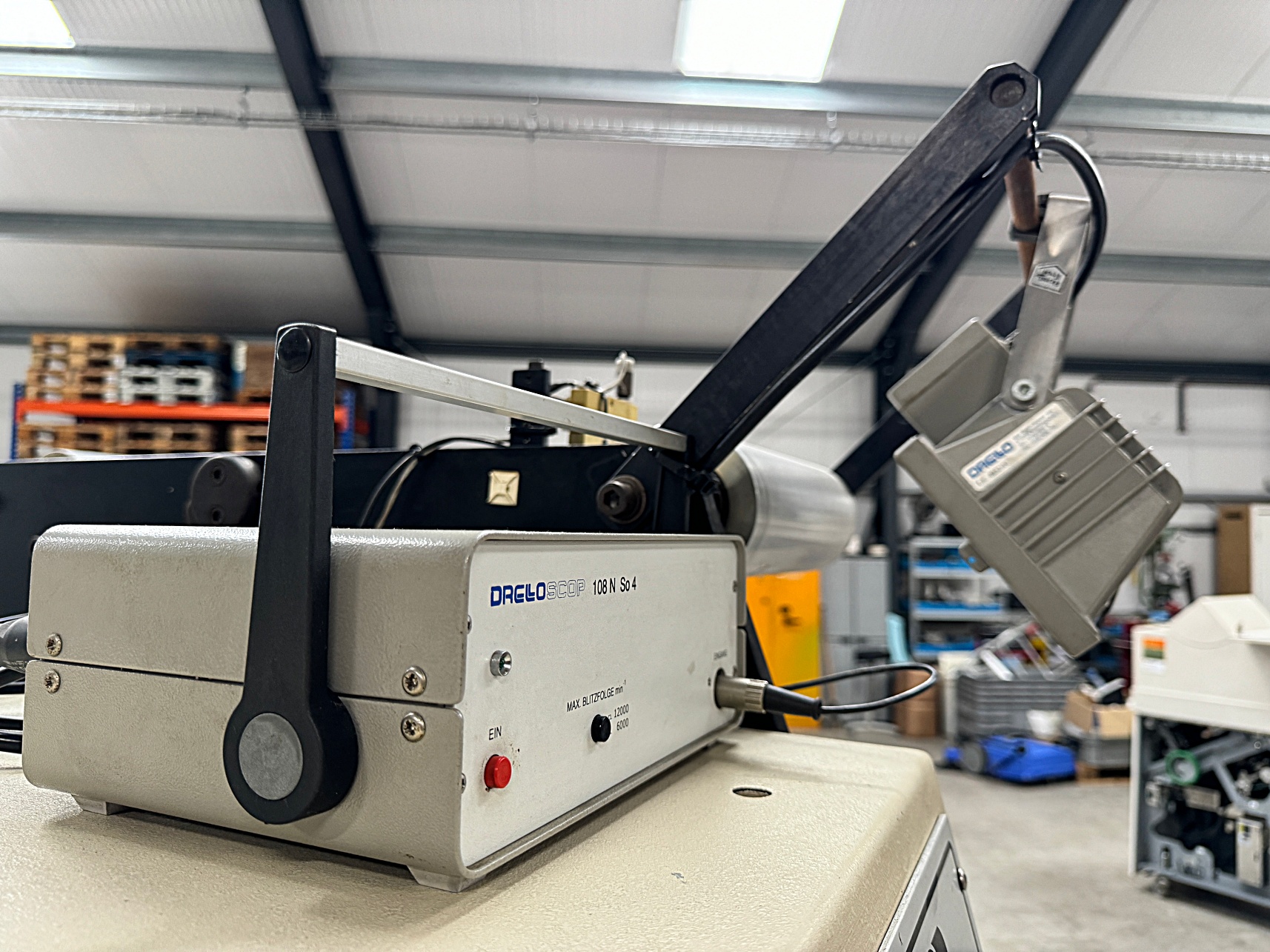

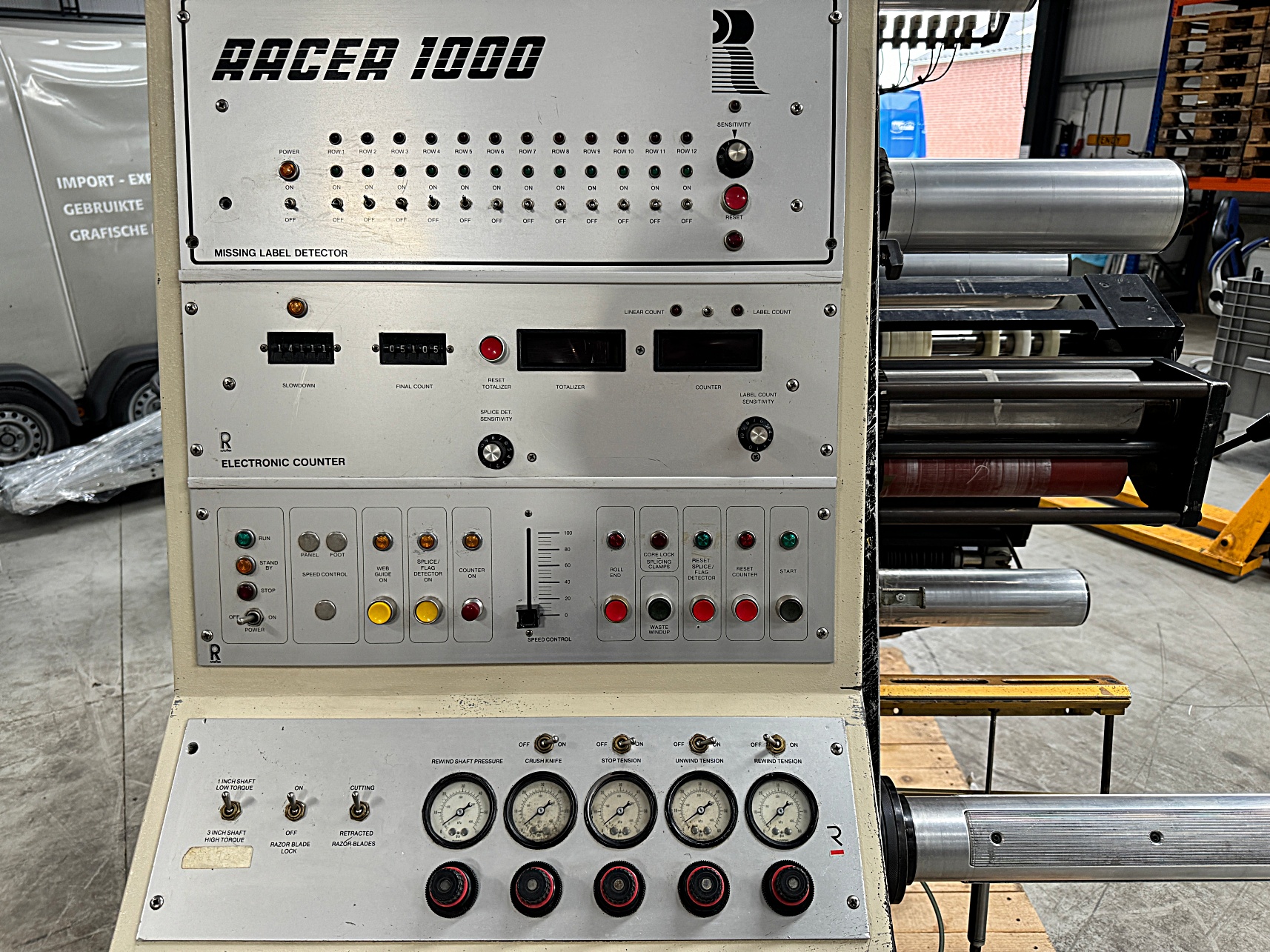

| Description | Slitter / rewinder with inspection and label checking. Unwind with tension control. Electric operation with foot pedal. For rewinding rolls in register to smaller size rolls with up to 7 razor-knives. During the process the labels can be counted (numbers and meters) and checked visually with a strobe for quality and missing labels. |
| Size | Web width: up to 250 mms Roll diameter max. unwind: 700 mms / roll diameter max. rewind: 400 mms Shaft diameter unwind: 76 mms / shaft diameter rewind: 76 & 50 mms Speed: 0 – 230 m/min |
| Electrics | 220 V, 1 Ph, 18 A, 50 Hz. |
| Extra information: | |
| Dimensions | 1 machine pallet: 195x135x185 cm – 600 kgs |
| HS Code | 8441 1010 |
Click on the photos and save them to your pc, computer, tablet or phone.
Product enquiry
All our machines are owned by us and available from our warehouse in Stevensbeek – NL, cleaned and checked. We sell FCA (Incoterms 2020).
