Rotoflex – Racer 1000

Brand / modelRotoflex / Racer 1000
Typeconverting machine
Year / SNna / R240-840427

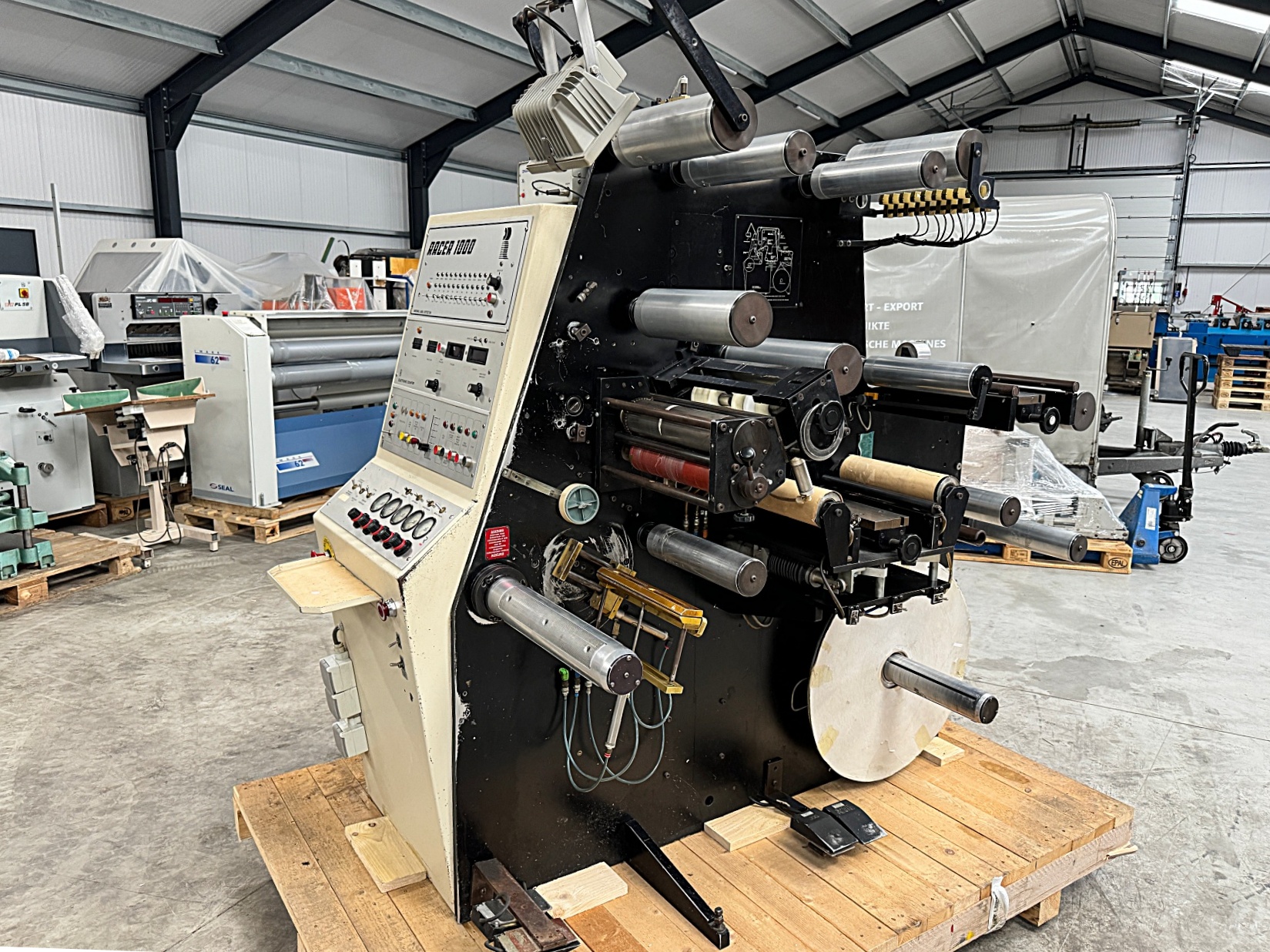

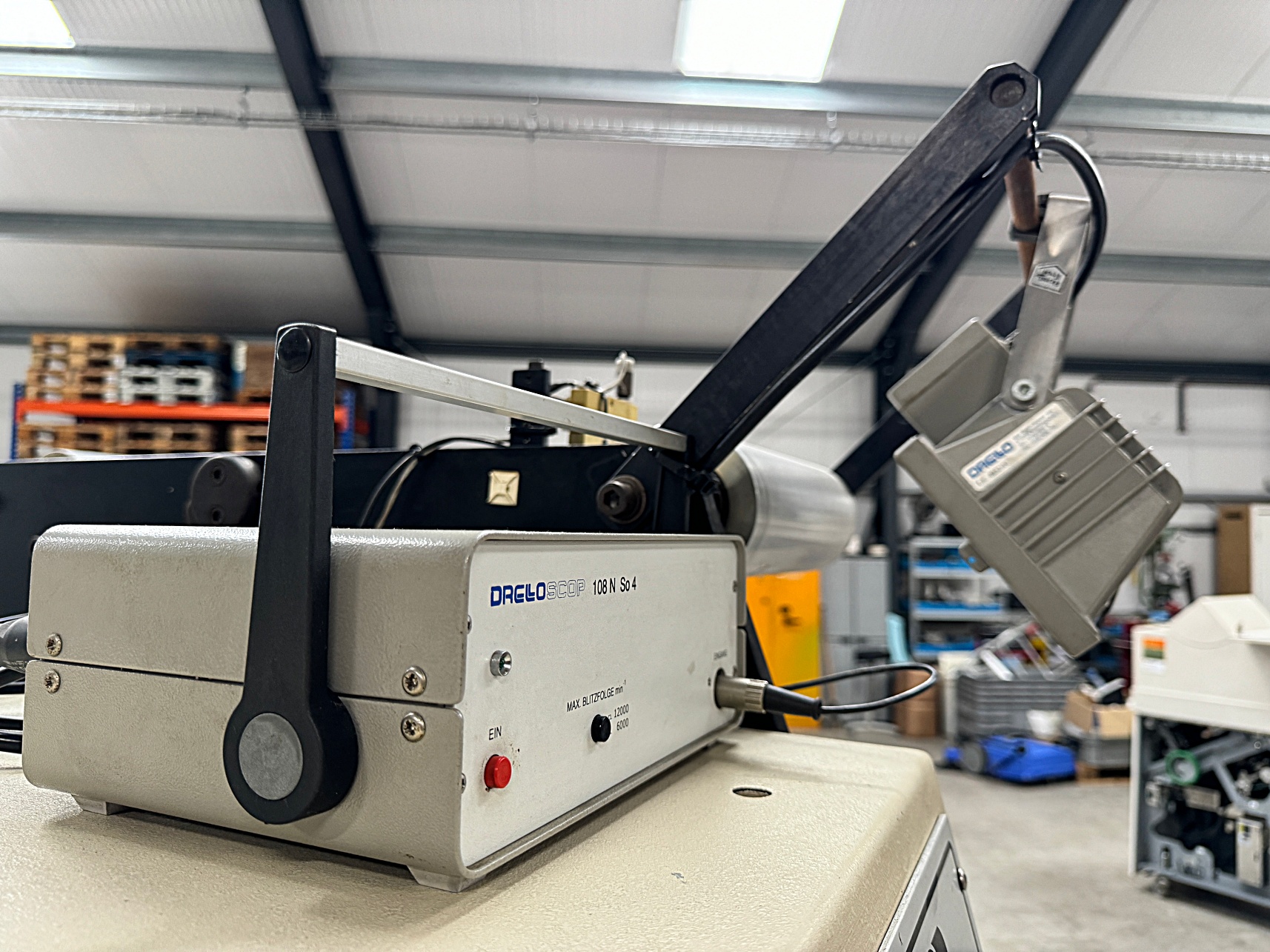

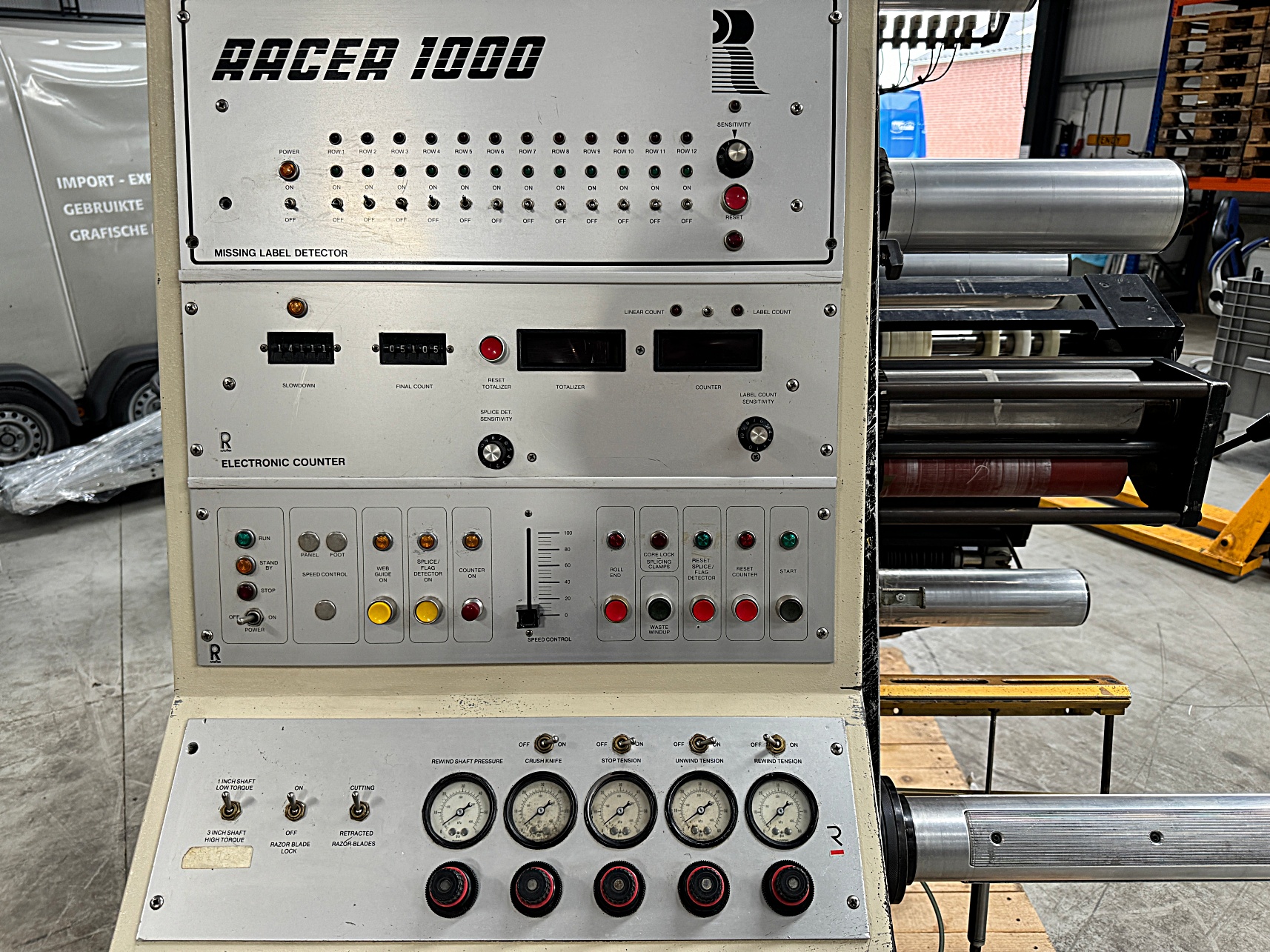

DescriptionSlitter / rewinder with inspection and label checking. Unwind with tension control. Electric operation with foot pedal. For rewinding rolls in register to smaller size rolls with up to 7 razor-knives. During the process the labels can be counted (numbers and meters) and checked visually with a strobe for quality and missing labels.
SizeWeb width: up to 250 mms
Roll diameter max. unwind: 700 mms / roll diameter max. rewind: 400 mms
Shaft diameter unwind: 76 mms / shaft diameter rewind: 76 & 50 mms
Speed: 0 – 230 m/min
Electrics220 V, 1 Ph, 18 A, 50 Hz.
Extra information:
Dimensions 1 machine pallet: 195x135x185 cm – 600 kgs
HS Code8441 1010
