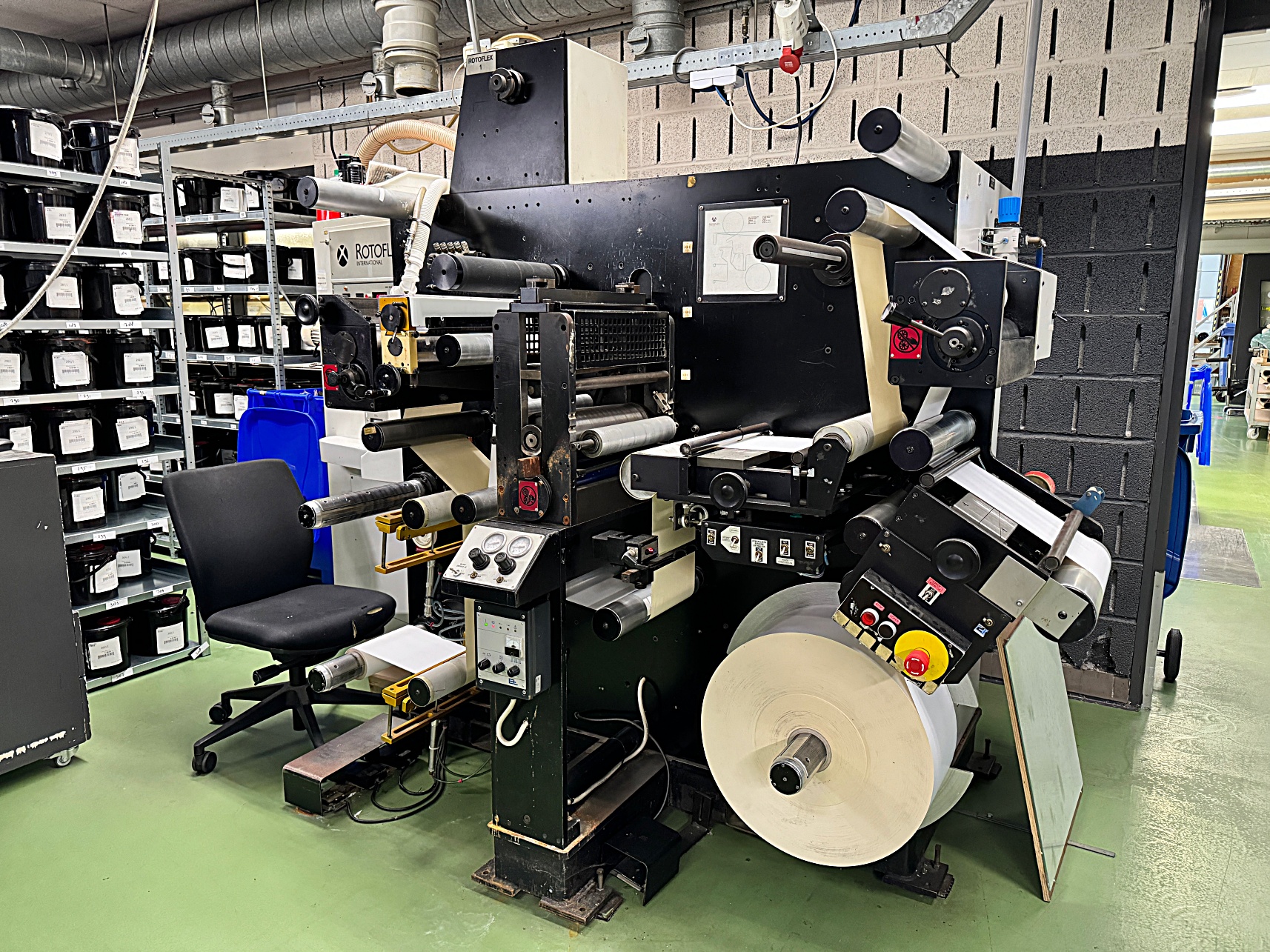

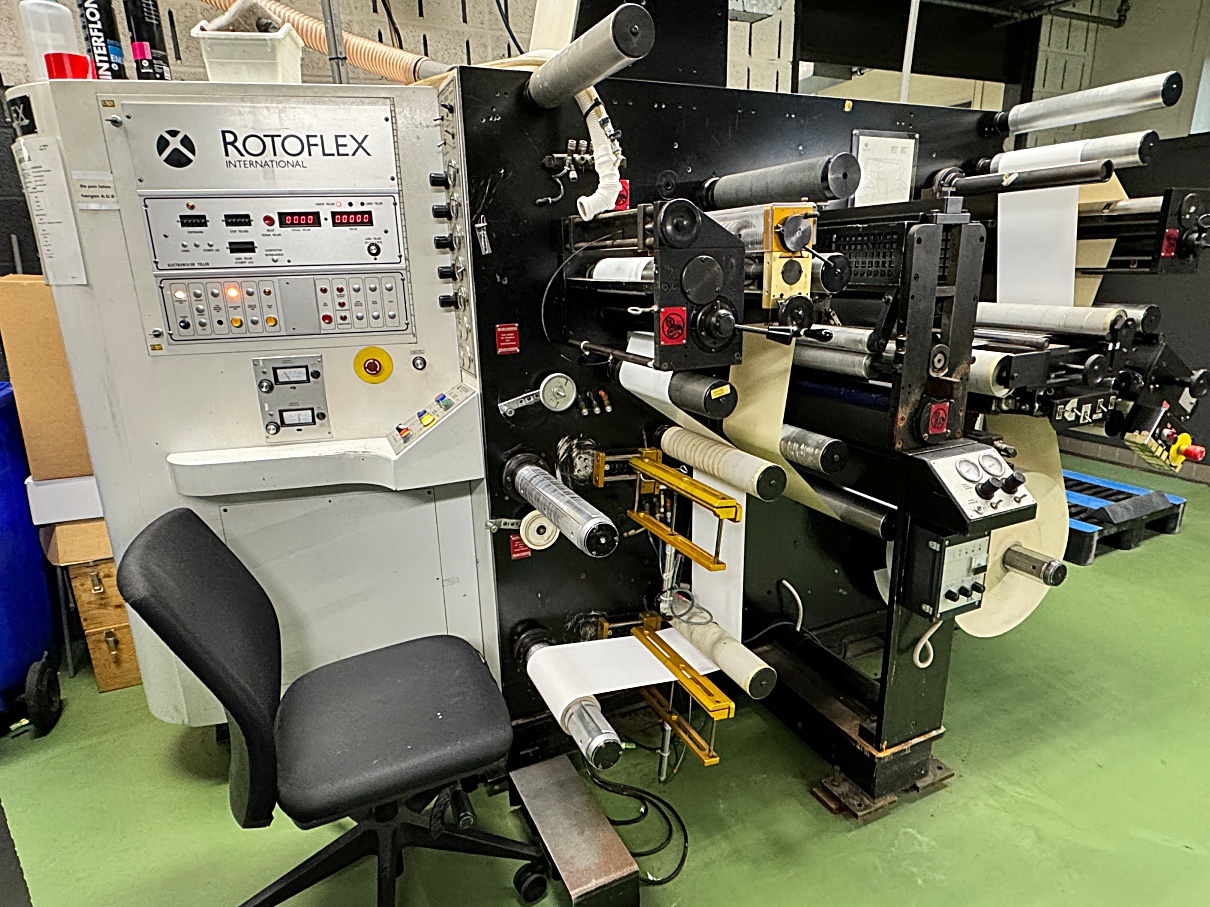

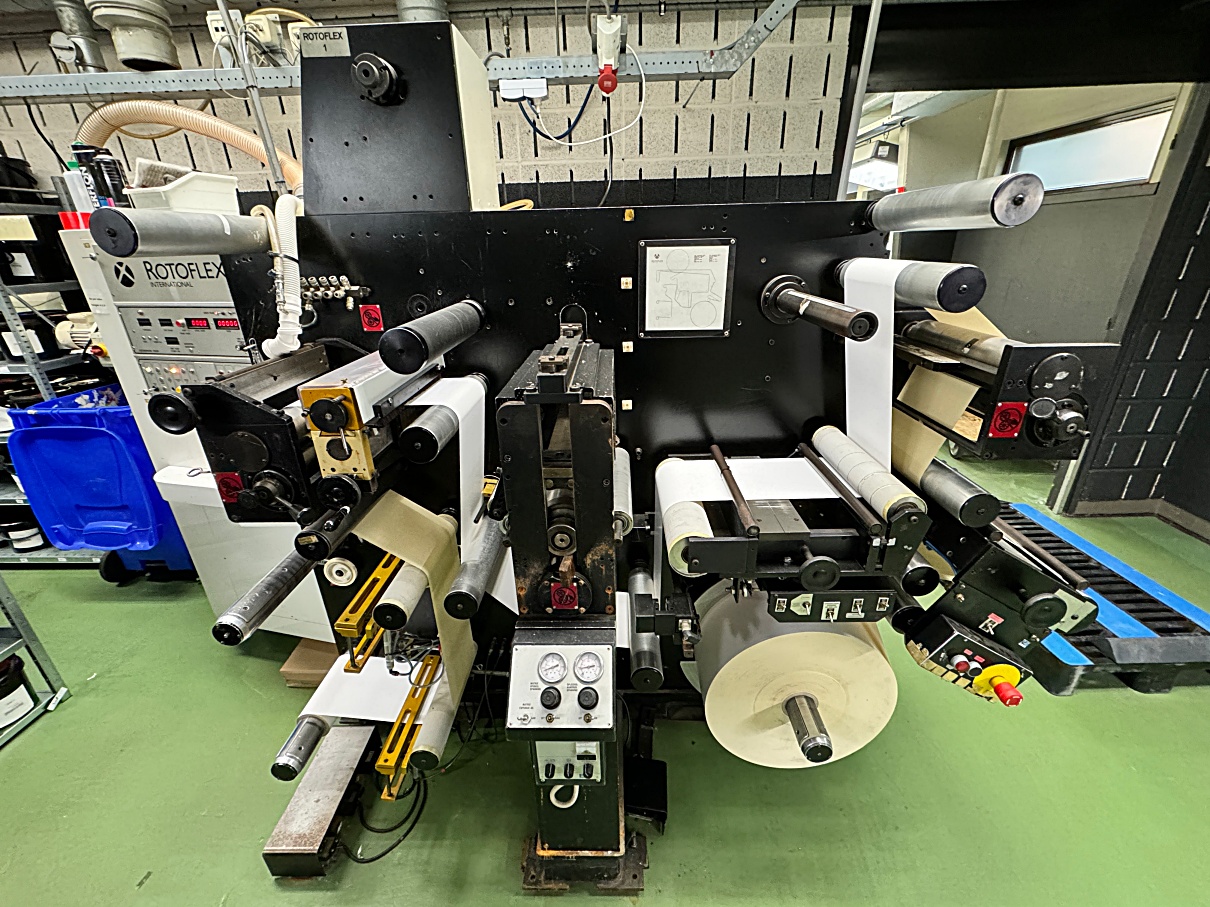

Rotoflex – VLI 330

Brand / modelRotoflex / VLI 330
Typeconverting machinery

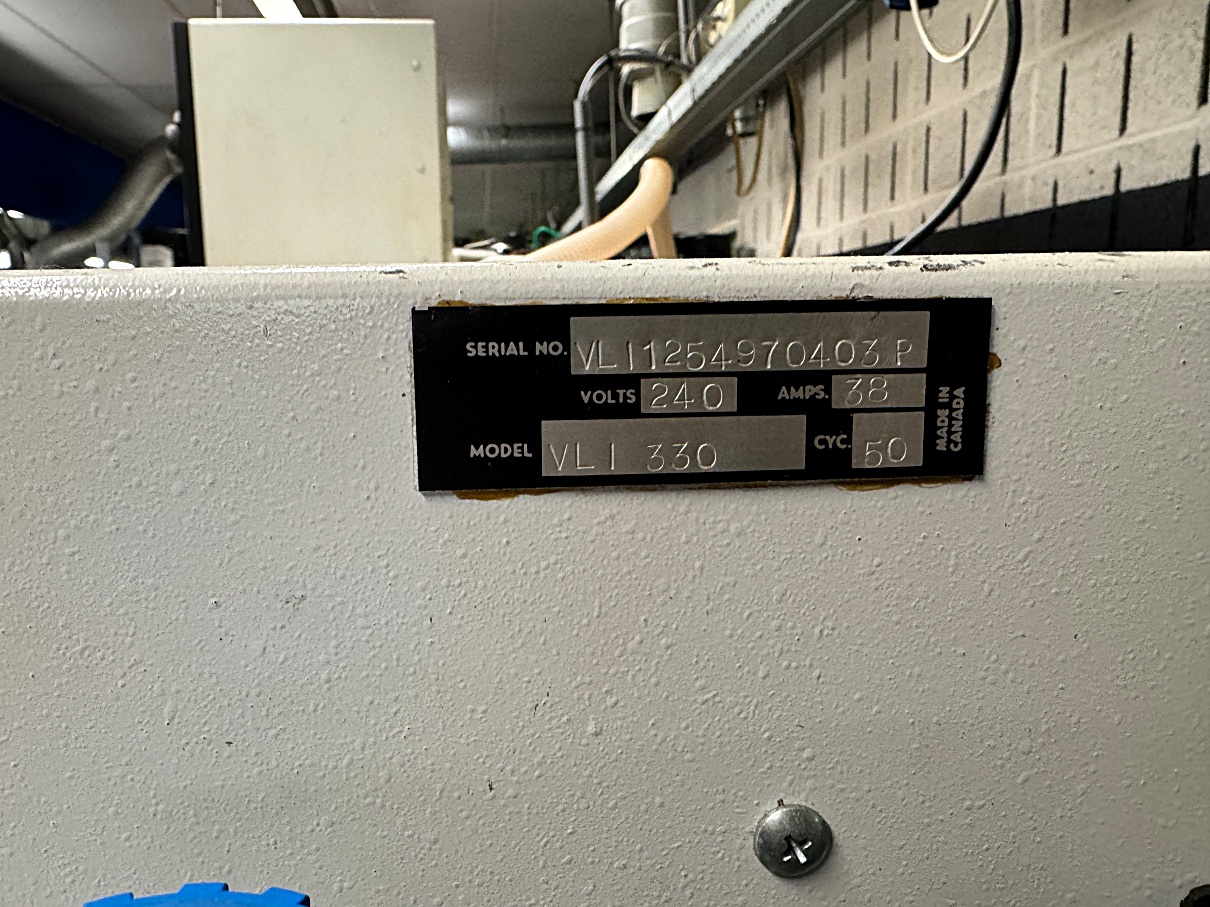

Year / SN2001 / VLI1901000217

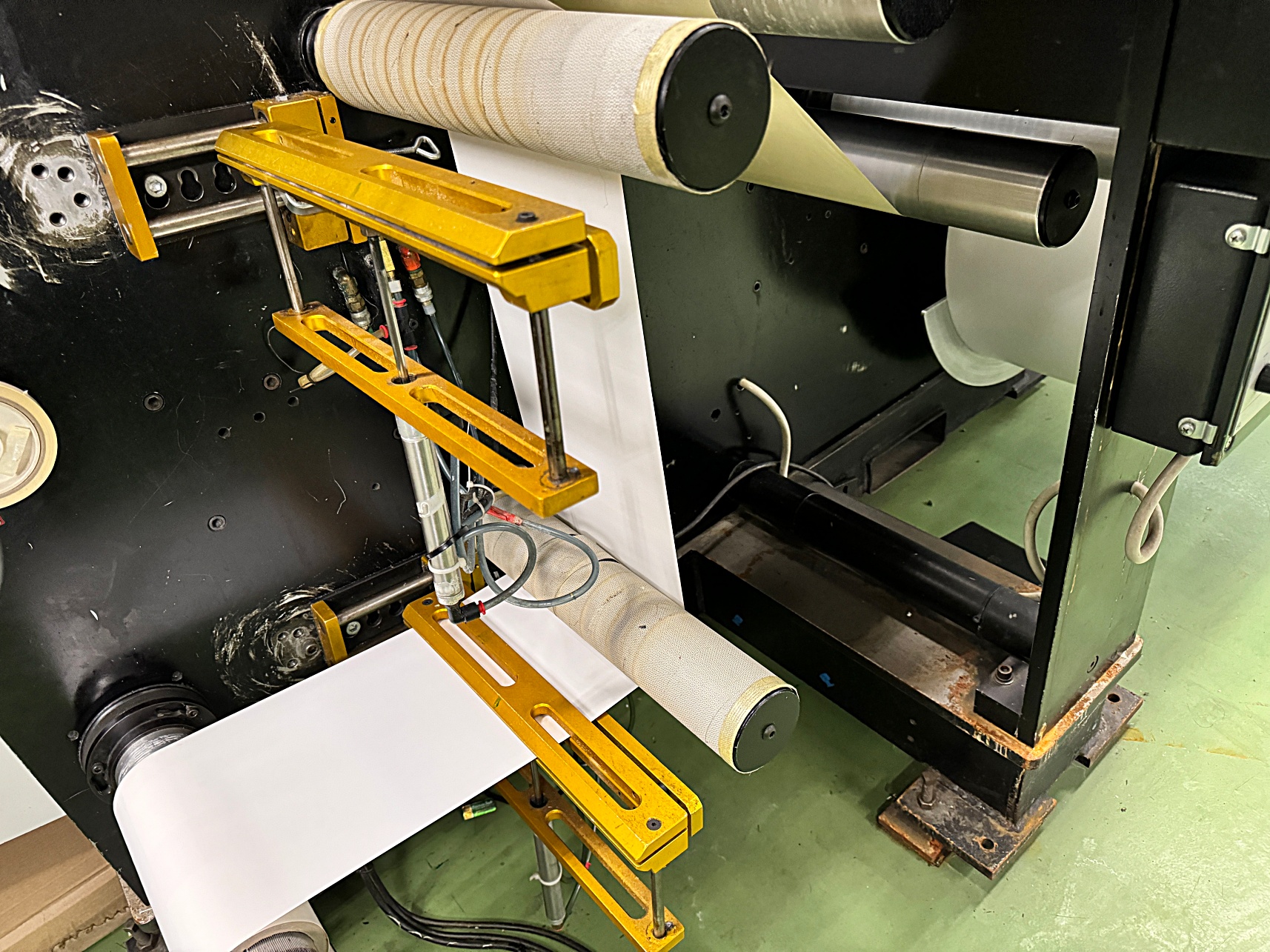

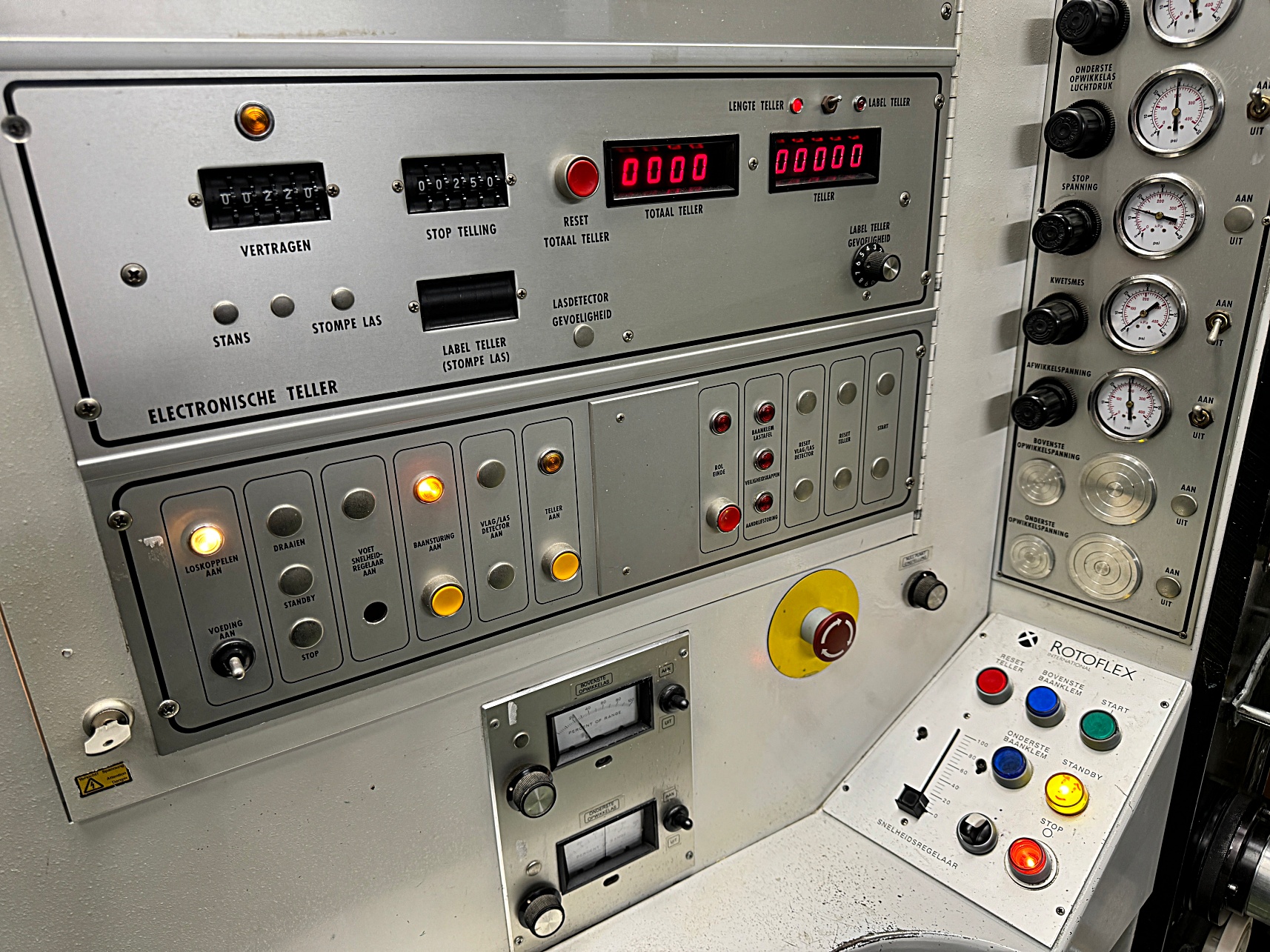

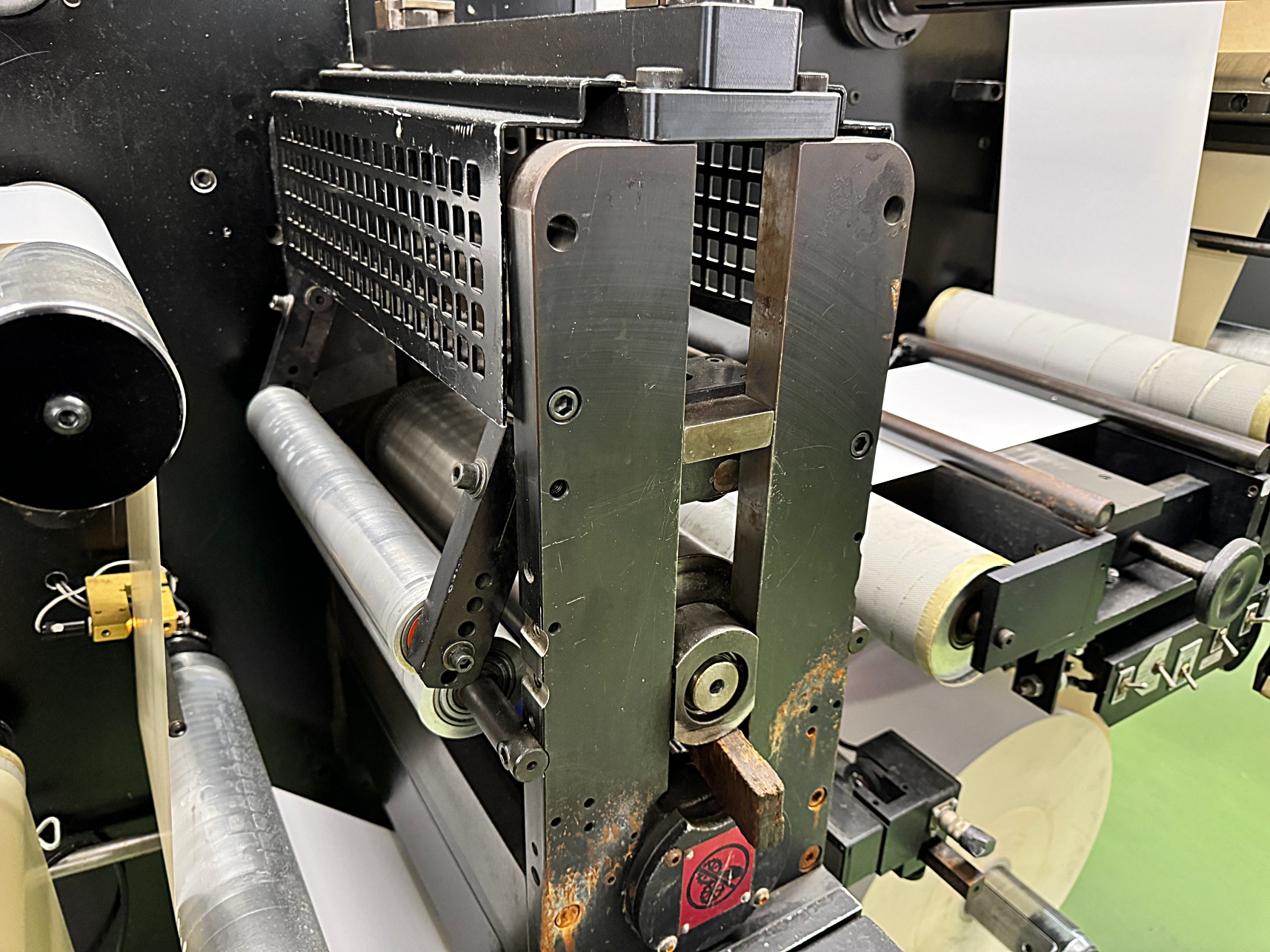

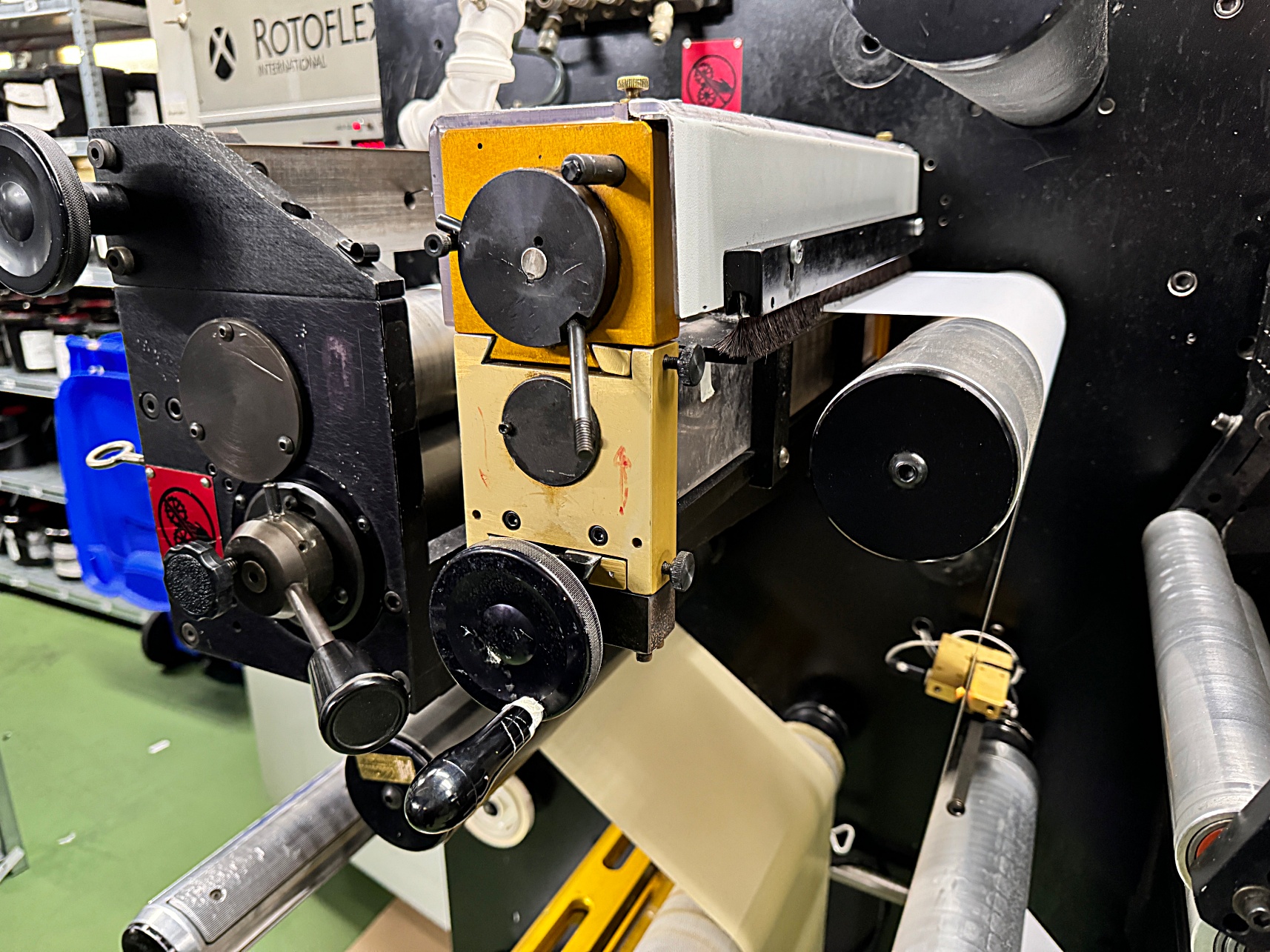

DescriptionDie-cutter / slitter / cutter / rewinder with inspection and label checking. Unwind with tension control and single edge guiding. Pneumatic bars on the splice tables for changing rolls. Pressure controlled die-cutting station with 1 magnetic cylinder. Pressure operated knife unit. Digital operation panel for all functions, settings, counters, and jobs. Also foot-pedal operation. For automatic rewinding and cutting rolls in register to smaller size rolls. Waste removal. During the process the labels can be counted (numbers and meters) and checked for quality and missing labels.
SizeMax. web width: 330 mms
Roll diameter max. unwind: 700 mms / roll diameter max. rewind: 400 mms
Shaft diameter unwind: 76 mms / shafts diameter rewind: 76 mm)
Speed: 0 – 230 m/min
Electrics 240 V, 1 Ph, 2 KVA, 50 Hz, 38 A.
Extra information:
Dimensions 1 machine pallet: 280x160x220 cm – 1.600 kgs
HS Code8441 1010

Click on the photos and save them to your pc, computer, tablet or phone.

Product enquiry

    All our machines are owned by us and available from our warehouse in Stevensbeek – NL, cleaned and checked. We sell FCA (Incoterms 2020).
