| Brand / model | Rotoflex / VSI 400 |
| Type | converter & Ixor labeler |

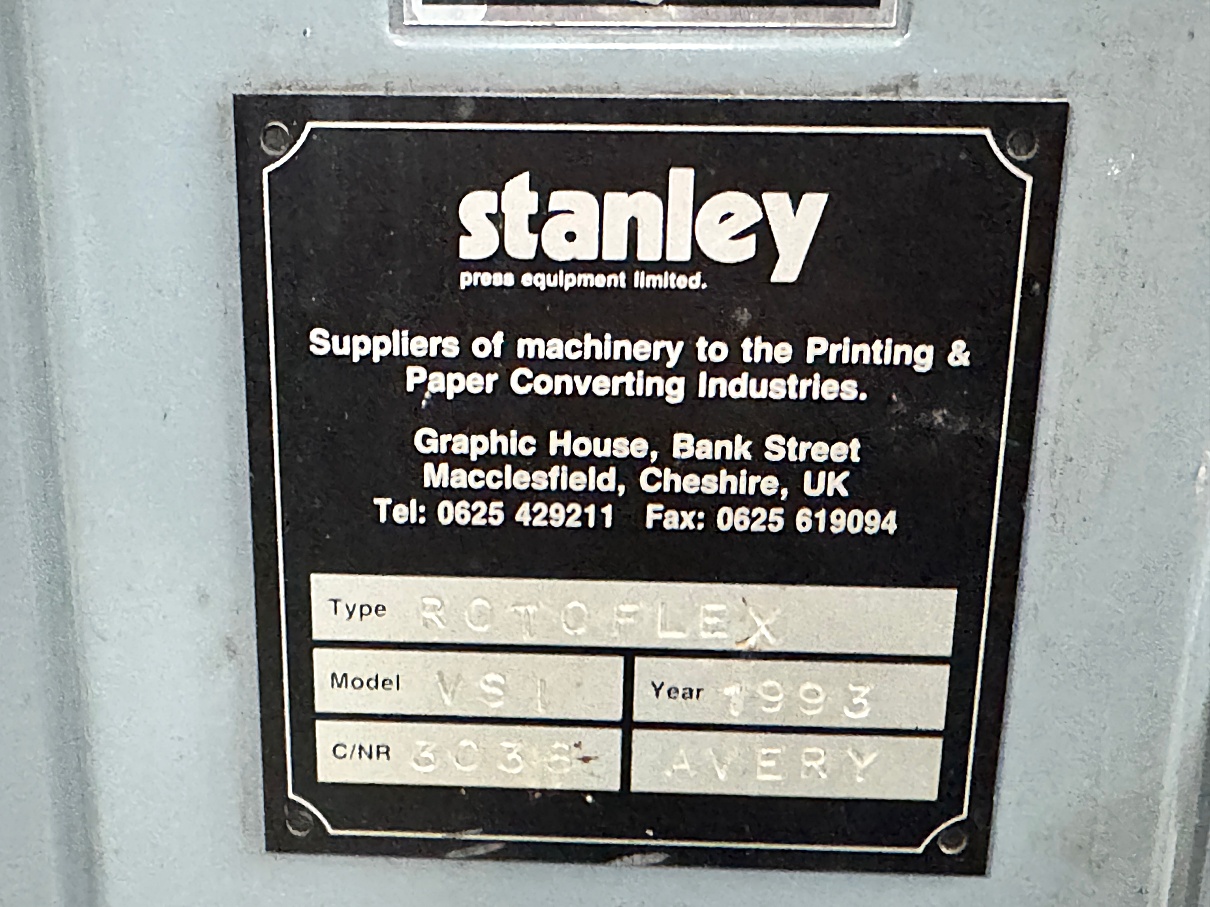

| Year / SN | 1993-2019 / VSI 667930913 |

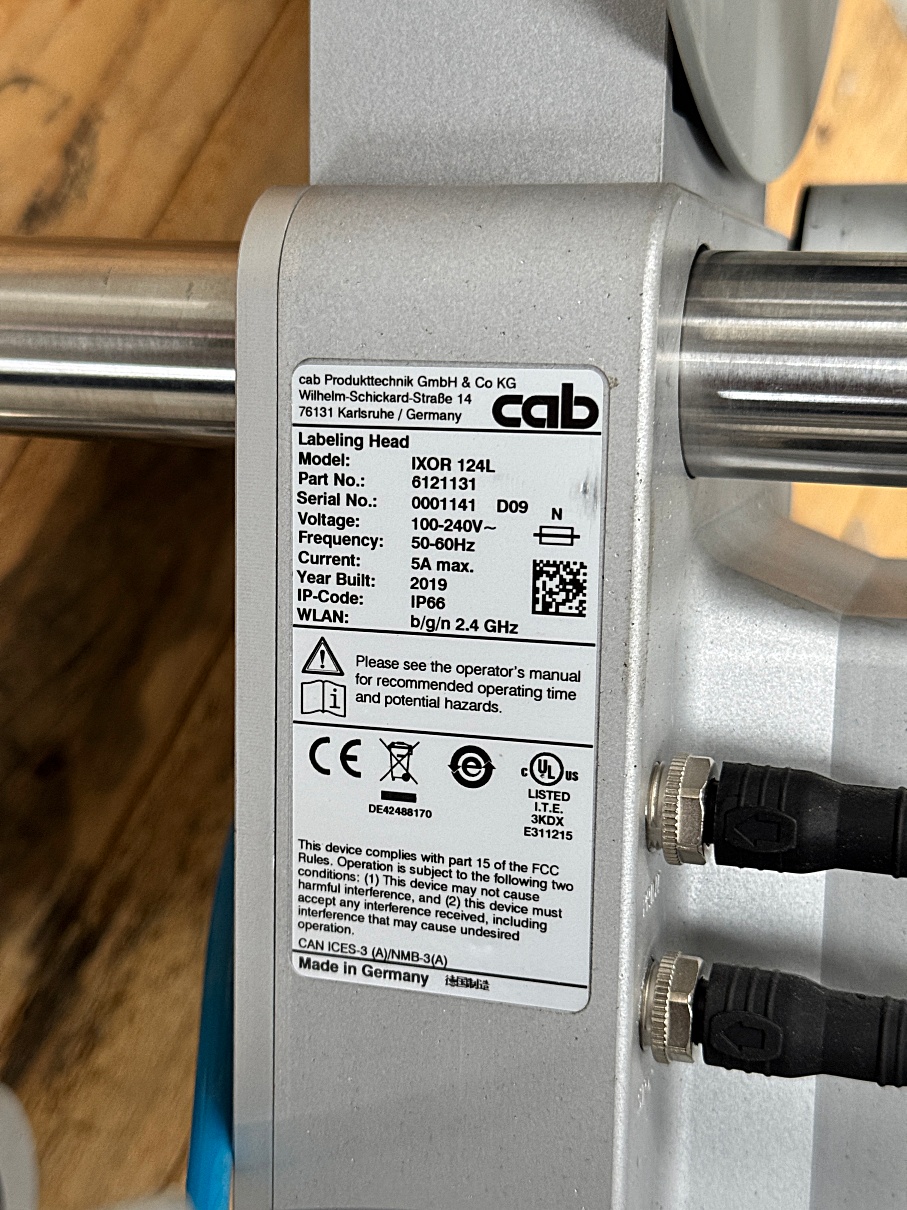

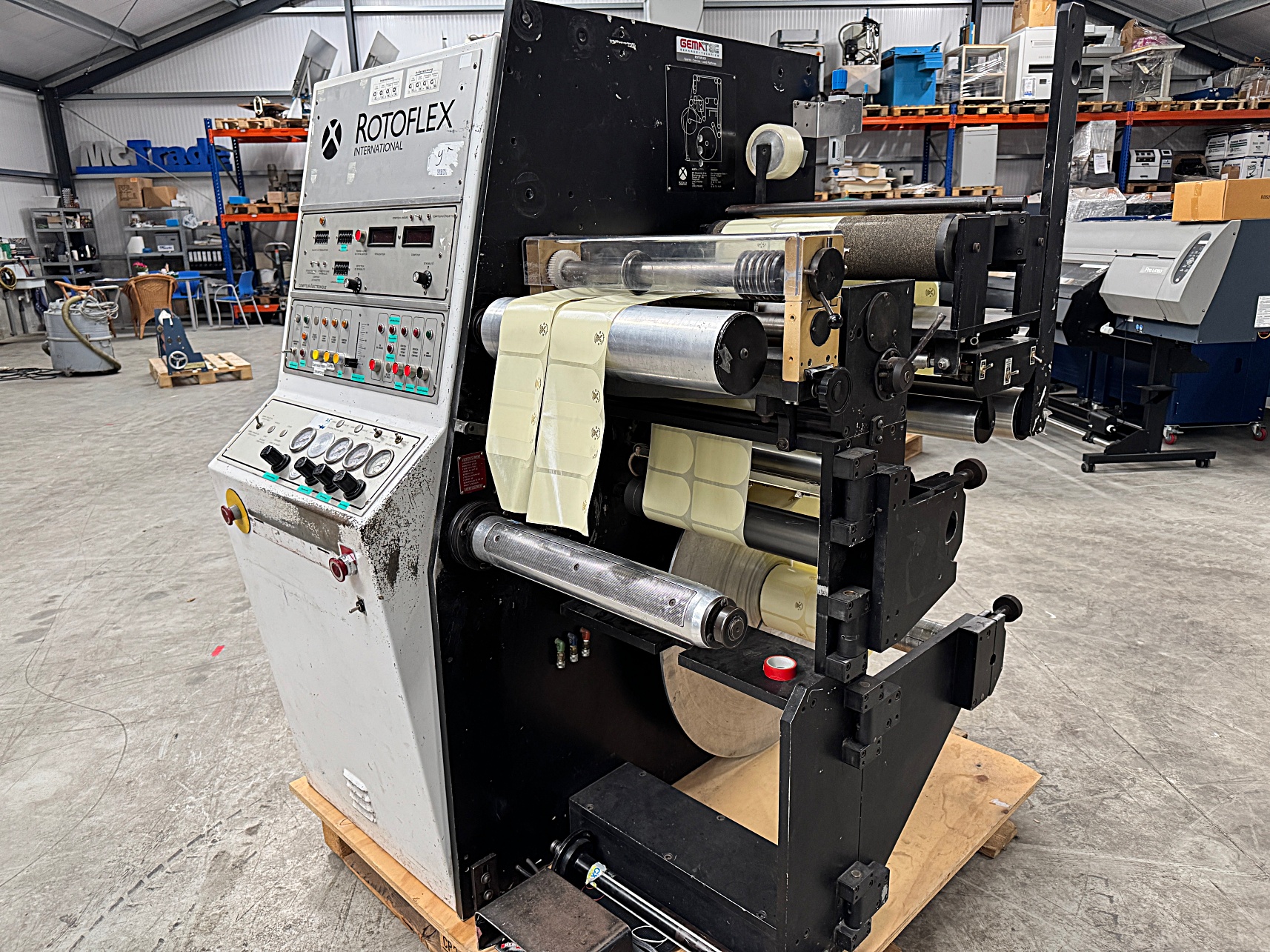

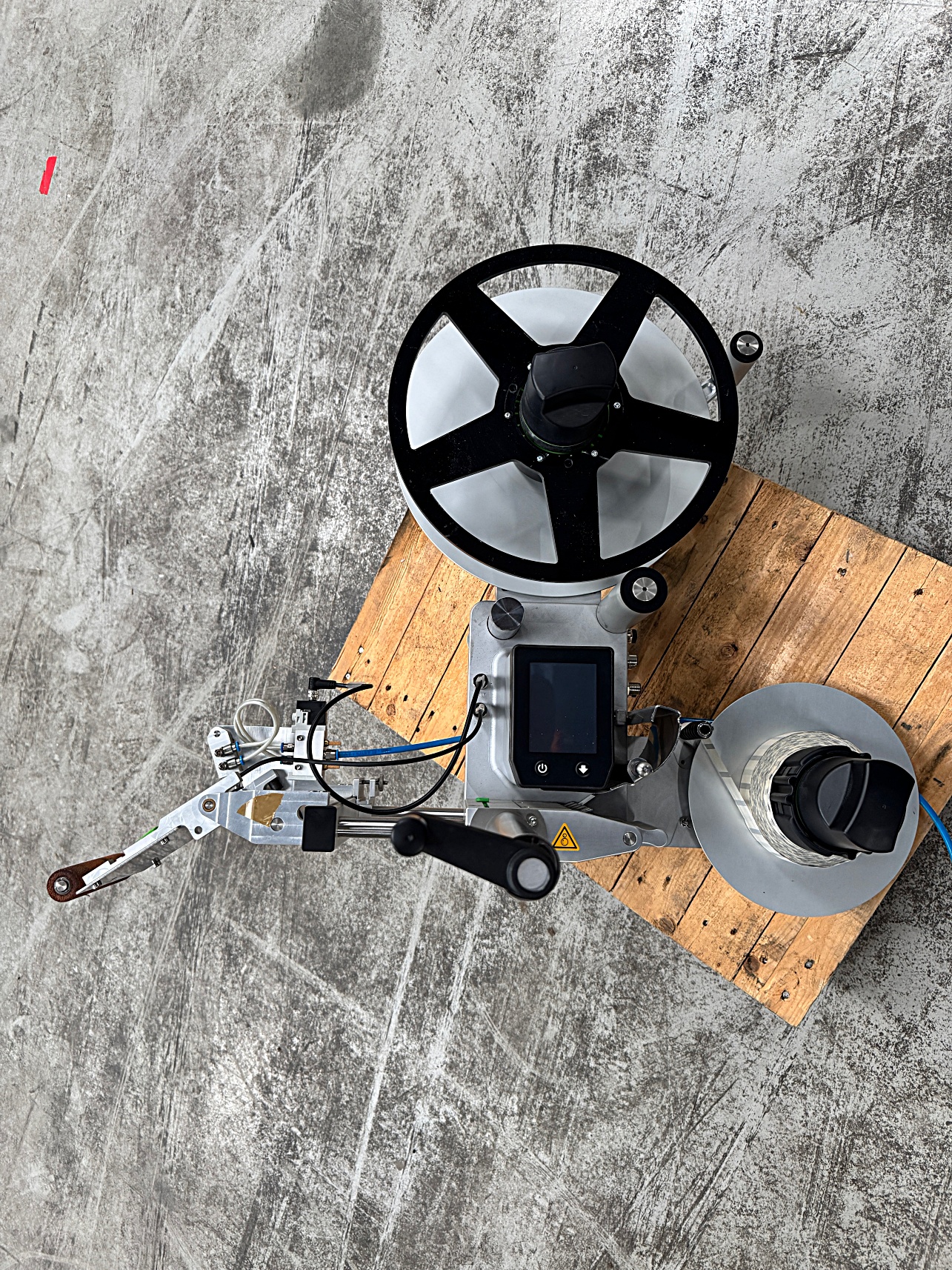

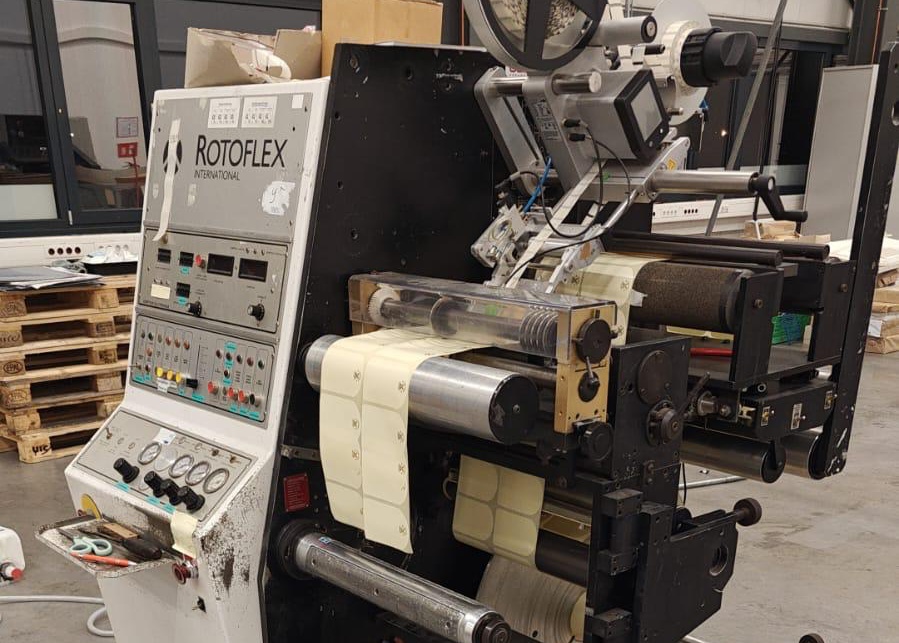

| Description | Slitter / rewinder with visual inspection, label checking and an Ixor programmable labeling head (2019). Unwind with tension control. Electric operation with foot pedal. For rewinding rolls in register to smaller size rolls with up to 6 roll knives and separators. During the process the labels can be counted (numbers and meters) and checked visually for quality and missing labels. The Ixor can add an extra label (e.g. warning) in register onto the web where normally this would have been done with a more expensive label from e.g. a screen printer (operating with a touch screen colour panel). |
| Size | Max. web width: up to 400 mms Roll diameter max. unwind: 700 mms / roll diameter max. rewind: 400 mms Shaft diameter unwind: 76 mms / shaft diameter rewind: 40 & 76 mms Speed: 0 – 230 m/min |
| Electrics | 240 V, 1 Ph, 18 A, 50 Hz. |
| Extra information: | |
| Dimensions | 1 machine pallet: 150x150x175 cm – 750 kgs |
| HS Code | 8441 1010 |
Click on the photos and save them to your pc, computer, tablet or phone.
Product enquiry
Fout: Contact formulier niet gevonden.
All our machines are owned by us and available from our warehouse in Stevensbeek – NL, cleaned and checked. We sell FCA (Incoterms 2020).
